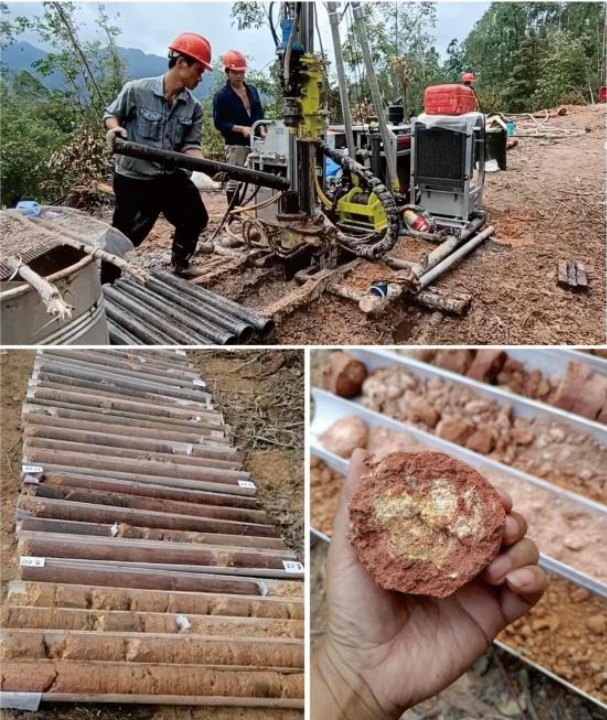

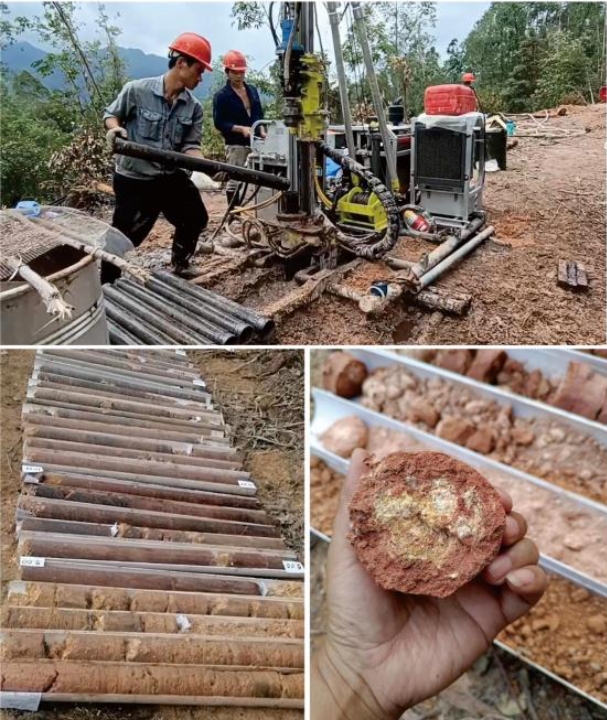

Exploration Drilling Rig for Geological Coring Before Pile Foundation

• Fuel Efficient – Variable speed Motor

Compact and lightweight, easy speed adjustment, highvolumetric efficiency, can save fuel by over 20%!

Hydraulic Automatic Standard Penetration Tester
Enclosed hammer, safe and reliable, easy operation.

• Safe – New Type Lightweight Mud Pump

Compact and lightweight design, capable of pumpinglow-solids, high-viscosity, circulating drilling fluids, idealfor complex formation mud.

• Lightweight – New Type Lightweight Mud Pump

Compact and lightweight design, capable of pumping low-solids,high-viscosity, circulating drilling fluids, idealfor complex formation mud.

• Variable speed Motor
  Adjustable speed and torque continuously.high volumetric efficiency. fuel savings over 20%!
• New Electrical Control System
  7-inch display, drilling data acquisitionand remote monitoring
• Turbocharged Diesel Engine
  Strong power, high reliability. low fuelconsumption.
• New Lightweight Mud Pump
  Compact and lightweight design, capableof circulating mud and high-viscositydrilling fluids.
• Crawler
  Equipped with a dual-speed crawler chassis,remote-controlled operation, highly maneuverable.maximum traveling speed up to 4.0 km/h.maximum climbing angle up to 25°
• Foldable Mast
  Simple and reliable structure, easy operation.
• Hydraulic Automatic StandardPenetration Tester (Optional)Automatic striking,automatic counting.automatic data transmission.
• Protection Mesh
  Protect operators, ensure work safety.
• Integrated Hydraulic System
  Multifunctional integrated valve block, highreliability, low pressure loss.

Standard:

• Variable Speed Motor
• 7-inch Display Screen
• Wireless Remote Controller
• Rotation Unit Sideways Sliding Device
• Adjustable Drill Rig Support Seat
• Foldable Mast
• Safety Protection Mesh
• Foldable Drill Pipe Hanger

Optional:

• Hydraulic Automatic Standard Penetration Tester
• Steel Tracks
• Mud Recycling System
• BW100-7 Hydraulic Mud Pump

• Remote-controlled Track Movement – Highly Maneuverable
• Full Hydraulic Transmission – Strong Controllability
• Multi-process Integration – High Adaptability.
• Drilling Data Acquisition and Remote Monitoring
